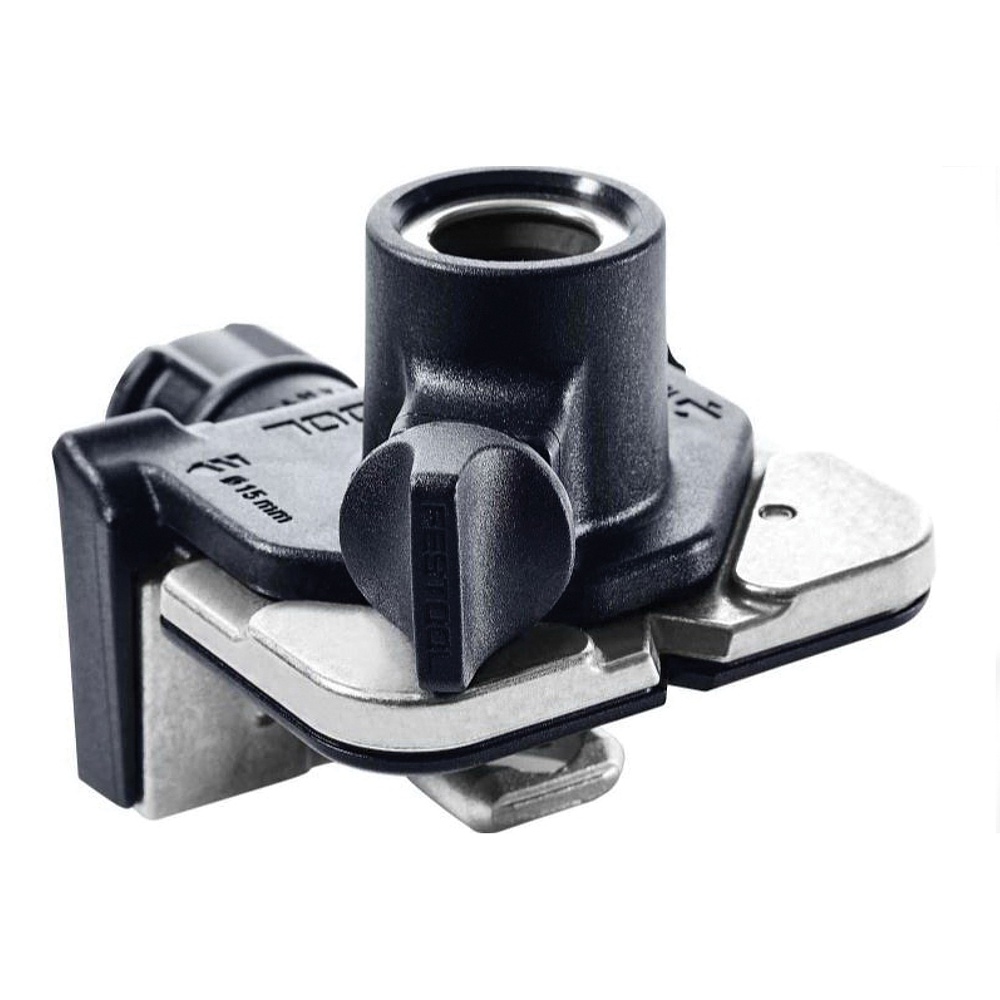

DRILLING JIG BS-KV D15

The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.

Strengths and benefits

• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connectors’ large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm

Main areas of use

• Drilling template for machining the DOMINO D 8 mm joint fixture

Adapted for

• for DF 500

• drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture

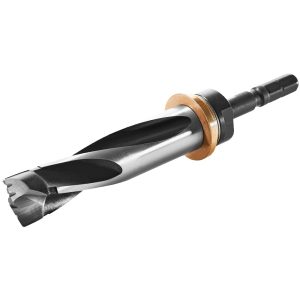

• adapted to Festool D15 hinge location cutter (203165)

in self-service display pack

Warranty all-inclusive
