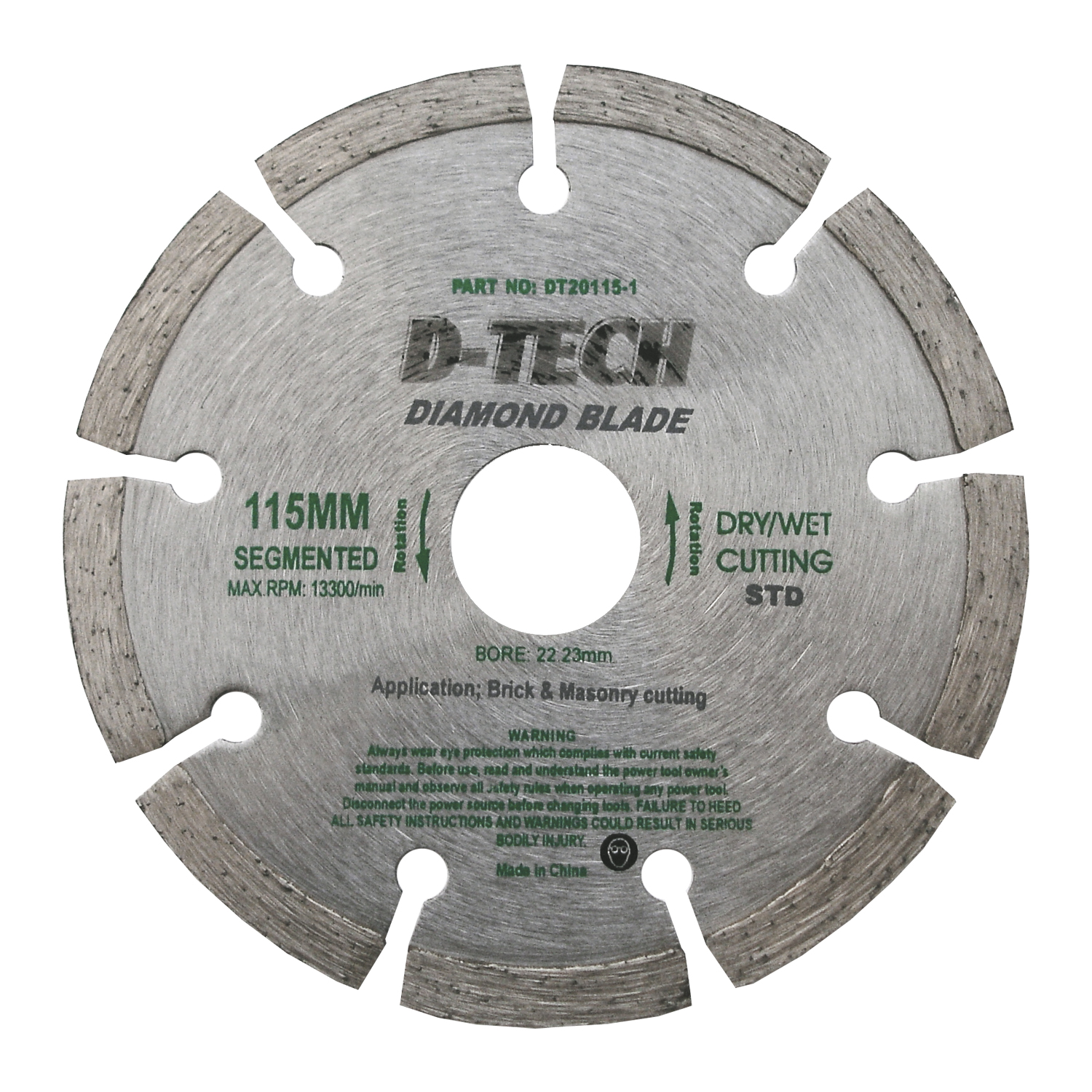

DIAMOND BLADE SEGMENTED STD. 115 X 22.23MM

Diameter: Ø115mm
Arbor: Ø22.23mm
Body Thickness: 1.0mm

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air
flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish,
however chipping may occur.

Segmented blades are the best option when water isn’t available. The blades are durable and have a long life
compared to other blades.

Application:

• Softer high abrasive materials such as cement, asphalt, cement bricks and clay bricks.
