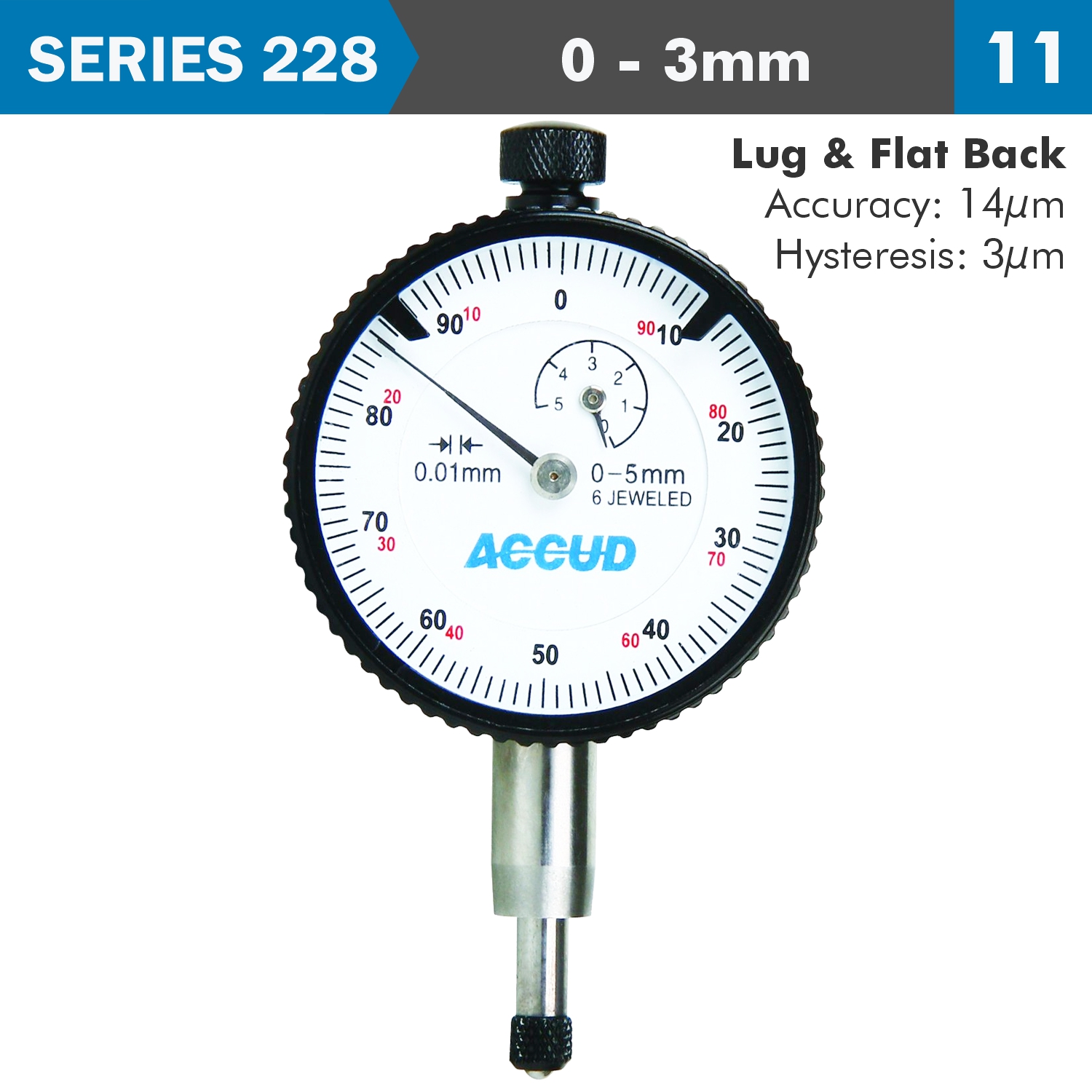

DIAL INDICATOR 3MM BEZEL 0.01MM GRAD. LUG&FLAT BACK

A dial indicator, also known as a dial gauge, is a precision measurement tool used to measure small linear
distances and variations in distance. It converts the linear movement of its spindle into the rotational
movement of a dial pointer, allowing for highly accurate readings.

Bezel: ⋄40mm

Graduation: 0.01mm with limit hands

Range: 0mm – 3mm

Accuracy: 14µm

Hysteresis: 3µm

Scale: 0 – 100

Back: lug and flat back

Manufacturer Cat No: 228-003-11

Applications

Dial indicators are widely used in various fields such as manufacturing,
machining, and quality control for tasks including:

• Measuring the flatness, roundness, and alignment of parts.
• Checking runout, deflection, and thickness.
• Inspecting the precision of machine tools and fixtures.
• Comparing dimensions to ensure conformity to specifications.

The versatility and precision of dial indicators make them indispensable
tools in any setting where accurate measurement of small distances is crucial.
